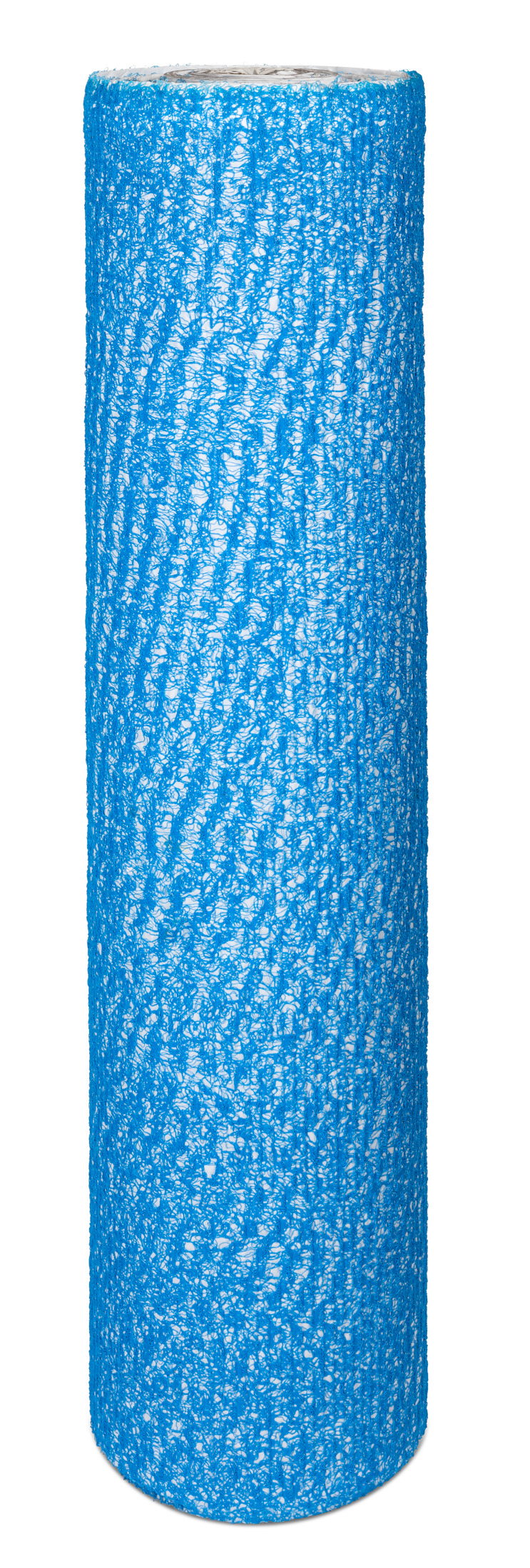

FIRM-FILL® SCM-125 (Sound Control Mat)
FIRM-FILL® SCM-125, a 1/8" (3mm) sound control mat, is engineered to limit impact sound transmission in multi-family construction. Ideal for when the gypsum concrete pour is not a standard thickness, FIRM-FILL® SCM-125 is topped with a minimum of 3/4" (19mm) of a FIRM-FILL® Brand Gypsum Concrete to create an effective low profile sound control system.
Recommended For
 |
Sound Attenuation Systems Application / MarketWood subfloors & concrete subfloors. |
Covered by
- FIRM-FILL® Gypsum Concrete
- FIRM-FILL® 2010+
- FIRM-FILL® 3310
- FIRM-FILL® High Strength
- FIRM-FILL® CMD
- GYP-SPAN® Radiant
Features & Benefits
- Cost-effective way to address IIC requirements
- Smoother floor transitions between hard surface and carpet areas
- Expert application; installed exclusively by Licensed Applicators
External Resources
Sweets ProductTAG
Product Resources
|
||||||||||||||||
Acoustical Design Guidelines |
 |
|||||||||||||||
Product Submittal |
|
|||||||||||||||
Project References |
|
|||||||||||||||
BIM |
|
|||||||||||||||
CAD |
 |
|||||||||||||||
Drying Conditions Flyer |
|
|||||||||||||||
Post-Pour Instructions |
|
|||||||||||||||
Guidelines for Finished Floor Coverings |
|
|||||||||||||||
Thickness Guidelines |
|
|||||||||||||||
Warranty |
|
|||||||||||||||
SCM Installation Notes |
|
|||||||||||||||
Featured Application | ||||||||||||||||
Margaritaville Vacation Club, U.S. Virgin Islands |
|
|||||||||||||||
The Promenade at Founders Square in Portage, IN |
|
|||||||||||||||
Technical Data |
Properties |
|
| Roll Weight | 33 lbs. | |
| Thickness | 1/8" (3mm) | |
| Width | 60" | |
| Length | 80' | |
| Square Feet/Roll | 400 square feet/roll |
Compression Resistance
Force Applied |
Residual Thickness |
Actual Residual Thickness (in) |
| 42 lbs./sf | 100% | 0.191 |
| 105 lbs./sf | 98.96% | 0.189 |
| 505 lbs./sf | 97.11% | 0.182 |
FIRM-FILL® SCM-125 is a component in an overall floor/ceiling assembly. Its performance is affected by every other component and the likelihood of achieving code compliance is contingent upon many other trades including (but not limited to) framers, plumbers and drywall contractors. Developers and general contractors are responsible for building properly and testing field performance as soon as possible in order to assure the reliability of the project.
WARNING: Laboratory tests are not a guarantee of field performance because of the issues noted above and many other design errors that may occur. Please consult a professional acoustical consultant to assure plans are proper and that the floor/ceiling assembly can perform to expectations.
